数据结构学习笔记之采用邻接表C++实现图

  • 时间:
  • 浏览:
  • 来源:互联网

图的C++实现

  • 一、图的基本操作
  • 二、图的C++实现

一、图的基本操作

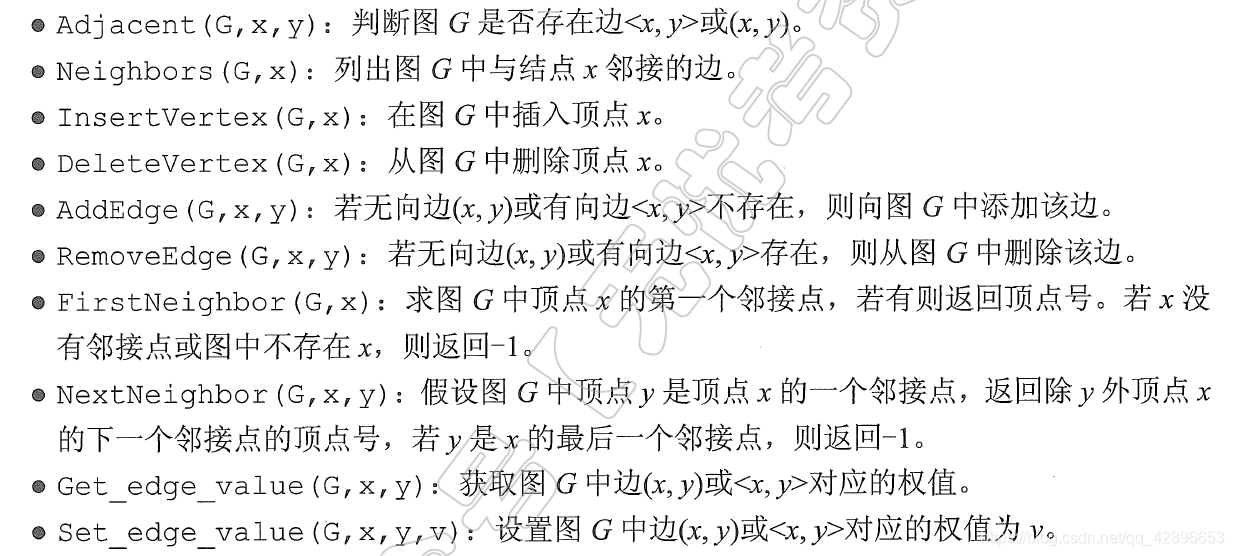

  • 图的基本操作如下图:
    在这里插入图片描述

二、图的C++实现

  • 采用邻接表实现,并没有全部实现上图的所有操作
    #pragma once
    #include <iostream>
    using namespace std;
    // 边表节点
    typedef struct Arcnode
    {
    	int adjevex; //顶点号
    	Arcnode* next; // 指向下一条弧
    	int weight; // 边权
    };
    // 顶点表
    typedef struct Vnode
    {
    	int data; // 顶点号
    	Arcnode* first; // 第一条依附于该顶点的边
    }AdjList;

    // 图
    class Graph
    {
    private:
    	AdjList* vertice; //邻接表
    	// 定点数和边数
    	int vexnum, arcnum;
    public:
    	Graph();
    	bool init(int vnum, int anum);
    	bool create();
    	bool adjacent(int x, int y);
    	void Neighbors(int x);
    	void AddVertx();
    };
    // 增加顶点
    void Graph::AddVertx()
    {
    	if (vertice == NULL)
    	{
    		cout << "邻接表未初始化" << endl;
    		return;
    	}
    	vertice[vexnum].data = vexnum;
    	vertice[vexnum].first = NULL;
    	vexnum += 1;
    }
    // 输出与 x 邻接的边
    void Graph::Neighbors(int x)
    {
    	if (vertice == NULL)
    	{
    		cout << "邻接表未初始化" << endl;
    		return;
    	}
    	Arcnode* p = vertice[x].first;
    	while (p->next != NULL)
    	{
    		cout << "边(" << x << " , " << p->adjevex << ")的权为:" << p->weight << endl;
    		p = p->next;
    	}
    }
    // 判断边存不存在
    bool Graph::adjacent(int x, int y)
    {
    	if (vertice == NULL)
    	{
    		cout << "邻接表未初始化" << endl;
    		return false;
    	}
    	Arcnode* p = vertice[x].first;
    	while (p->next != NULL)
    	{
    		if (p->adjevex == y)
    			return true;
    		p = p->next;
    	}
    	return false;
    }
    // 构造函数
    Graph::Graph()
    {
    	vertice = NULL;
    	vexnum = arcnum = 0;
    }
    bool Graph::init(int vnum, int anum)
    {
    	if (vertice != NULL)
    		return false;
    	vexnum = vnum;
    	arcnum = anum;
    	vertice = new Vnode[vexnum];
    	for (int i = 0; i < vexnum; i++)
    	{
    		vertice[i].data = i + 1;
    		vertice[i].first = NULL;
    	}
    	return true;
    }
    // 构造图
    bool Graph::create()
    {
    	if (vertice == NULL)
    	{
    		cout << "邻接表未初始化" << endl;
    		return false;
    	}
    	int** WN = new int* [vexnum];
    	for (int i = 0; i < vexnum; i++)
    		WN[i] = new int[vexnum];
    	cout << "请按照图的结构输入边信息到二维数组中,注意从顶点号为 1 的开始" << endl;
    	for (int i = 0; i < vexnum; i++)
    	{
    		for (int j = 0; j < vexnum; j++)
    			cin >> WN[i][j];
    	}
    	for (int i = 0; i < vexnum; i++)
    	{
    		for (int j = 0; j < vexnum; j++)
    		{
    			if (WN[i][j] != 0)
    			{
    				Arcnode* p = new Arcnode;
    				p->adjevex = j + 1;
    				p->weight = WN[i][j];
    				p->next = NULL;
    				if (vertice[i].first == NULL)
    					vertice[i].first = p;
    				else
    				{
    					Arcnode* t = vertice[i].first;
    					while (t->next != NULL)
    						t = t->next;
    					t->next = p;
    				}
    			}
    		}
    	}
    	for (int i = 0; i < vexnum; i++)
    		delete[] WN[i];
    	delete[] WN;
    	return true;
    }
